Automation for Heating and Cooling Steps - Peltier+

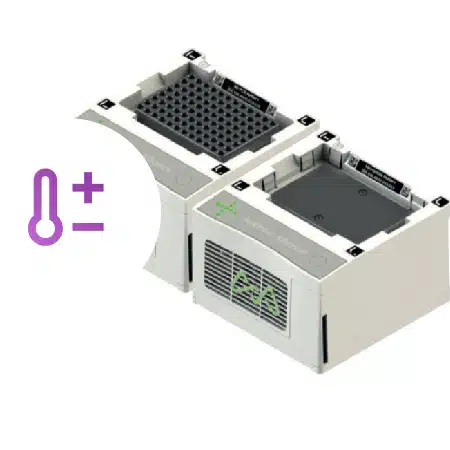

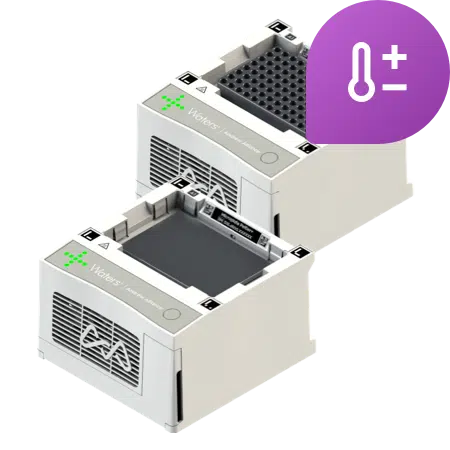

Peltier+

Compact all-in-one rapid heating and cooling technology, seamlessly connected with OneLab. Remote set-up and continuous monitoring of temperature, minimizes error and ensures maximum repeatability.

Connected to OneLab by Wi-Fi/Ethernet for remote control and tracking

Rapid cooling of consumables down to 0°C, as well as heating them up to 99°C

Compatible with unskirted, semi-skirted and skirted 96-pcr plate, as well as flat bottomed microplates

Can be used manually, in combination with Pipette+ or directly with Andrew+ (like a Domino)

Peltier+ technical specifications

Maximum heating temperature

99°C*

Heating rate

14°C/min*

Labware compatible

• 96-well PCR plate, skirted, Eppendorf (0030129555)
• 96-well flat bottom microplate, Greiner Bio-one (655101)

Maximum operating altitude

2000 m

User interface

Through OneLab software

Dimensions (W x L x H)

170 x 162 x 100 mm
(The specified dimensions are subject to change according to the labware)

External power supply

Input 100-240 VAC, 1.4 A / output 24 VDC, 5 A, 120 W

Overvoltage category DC port

Cat I

Network connectivity

Gigabit Ethernet / Wi-Fi 2.4 GHz and 5 GHz

Cleaning

Only with a wet tissue or isopropanol

Certification

CE, FCC, RoHS, WEEE

Minimal cooling temperature

0°C*

Cooling rate

9°C/min*

Relative humidity

80% at 37°C

Environment temperature operating range

+4 to +37 °C

Protection class

IP20

Weight

1.50 kg

Power or current rating

5 A

Operating voltage

24 VDC

Pollution degree of the intended environment

Pollution degree 2

Warranty

1 year

*Tested with 96-well PCR plate, skirted, LoBind, Eppendorf (0030129555) at room temperature of 26°C.
