Hands-free SPE,
made easy.

Automatic control of pressure profiles and automated labware
movements bring an all-new approach to SPE

Redefining SPE.
Waters SPE Excellence and Automation in One Solution.

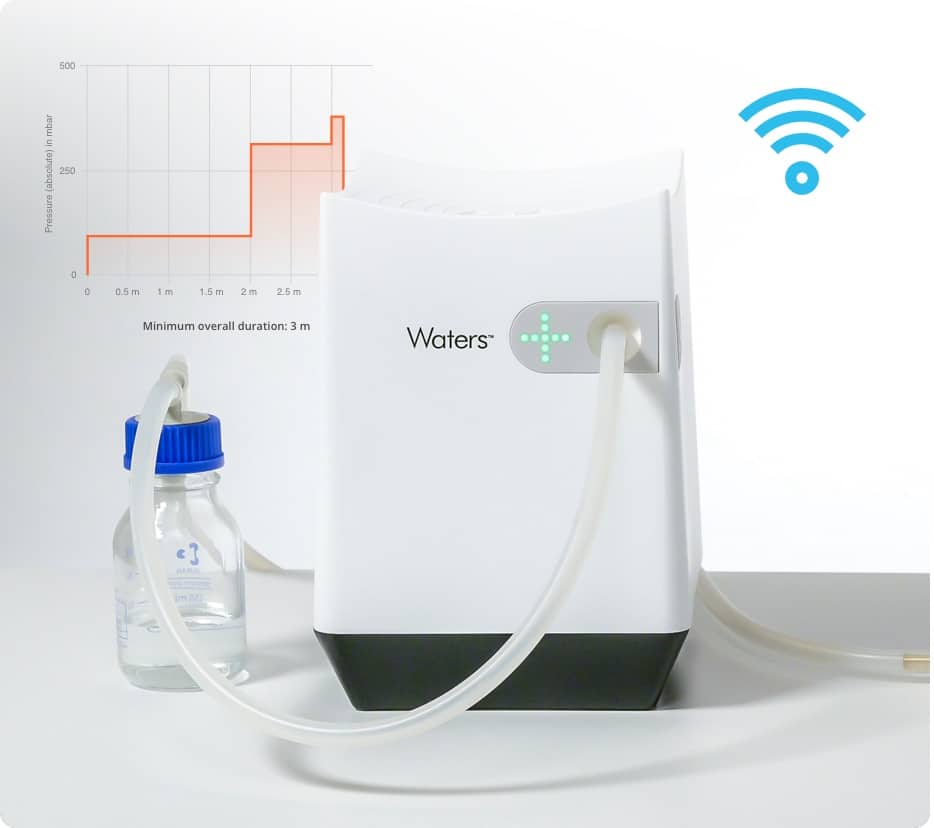

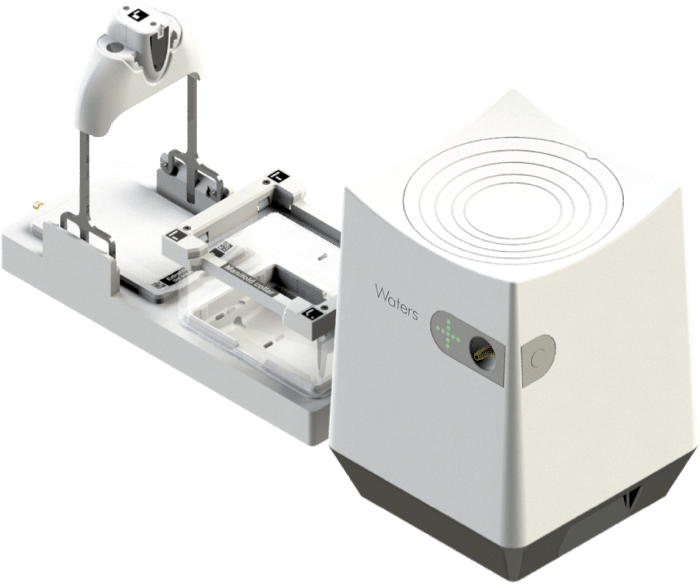

Connected Vacuum Pump

Successful and Reliable
Extractions

Real-time pressure profile control is a critical component to successful extraction methods. Automated pressure control is now possible thanks to a completely new vacuum pump with full connectivity to the OneLab software built-in.

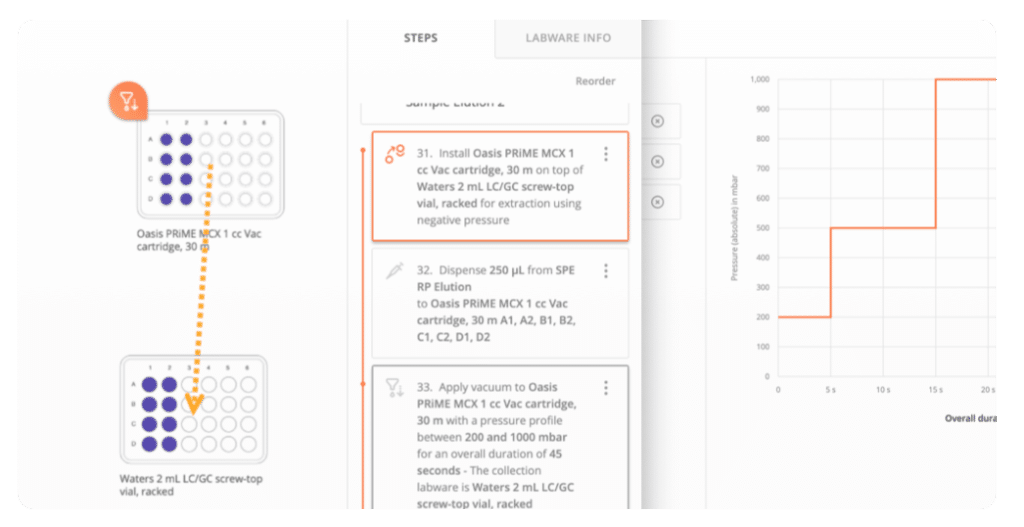

With our signature, intuitive approach to method design, users can now easily program a pressure profile that will be strictly followed during protocol executions – without any manual, on-device interventions necessary.

Automation-friendly Vacuum Manifold

Say Goodbye to Manual Extraction Methods

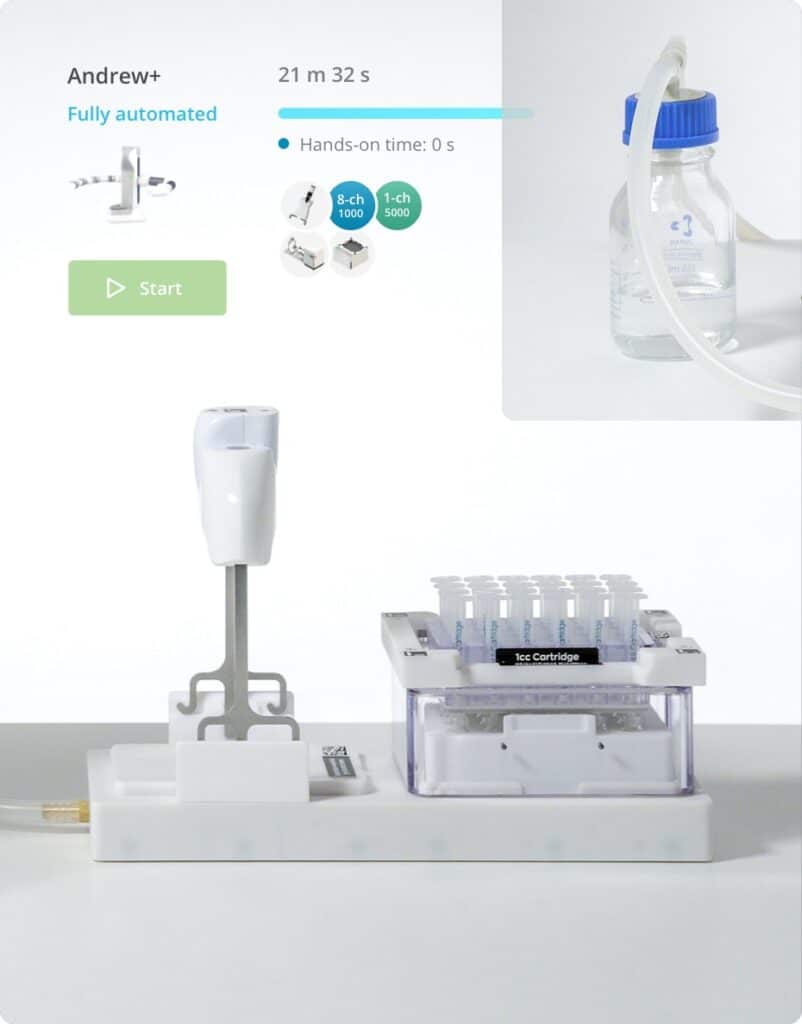

After pipetting directly into extraction labware and triggering the Extraction+ Connected Vacuum Pump, the Andrew+ robot can then grab, lift and move the Extraction+ collar back and forth between the idle and active positions of the manifold base. Moving the collar grants access to the insides of the device for automated exchanges of waste and collection labware.

When working with large volumes, or if no waste collection labware is needed, the Vacuum Manifold of the Extraction+ device enables continuous waste flow-through towards a collection bottle.

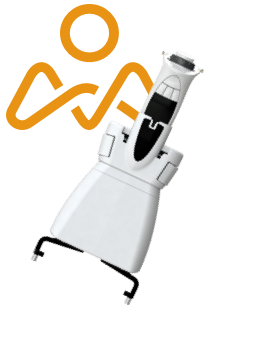

Equip your Andrew+ robot with the Microplate Gripper Tool to ensure automated movement of collection labware and racks into and out of the manifold.

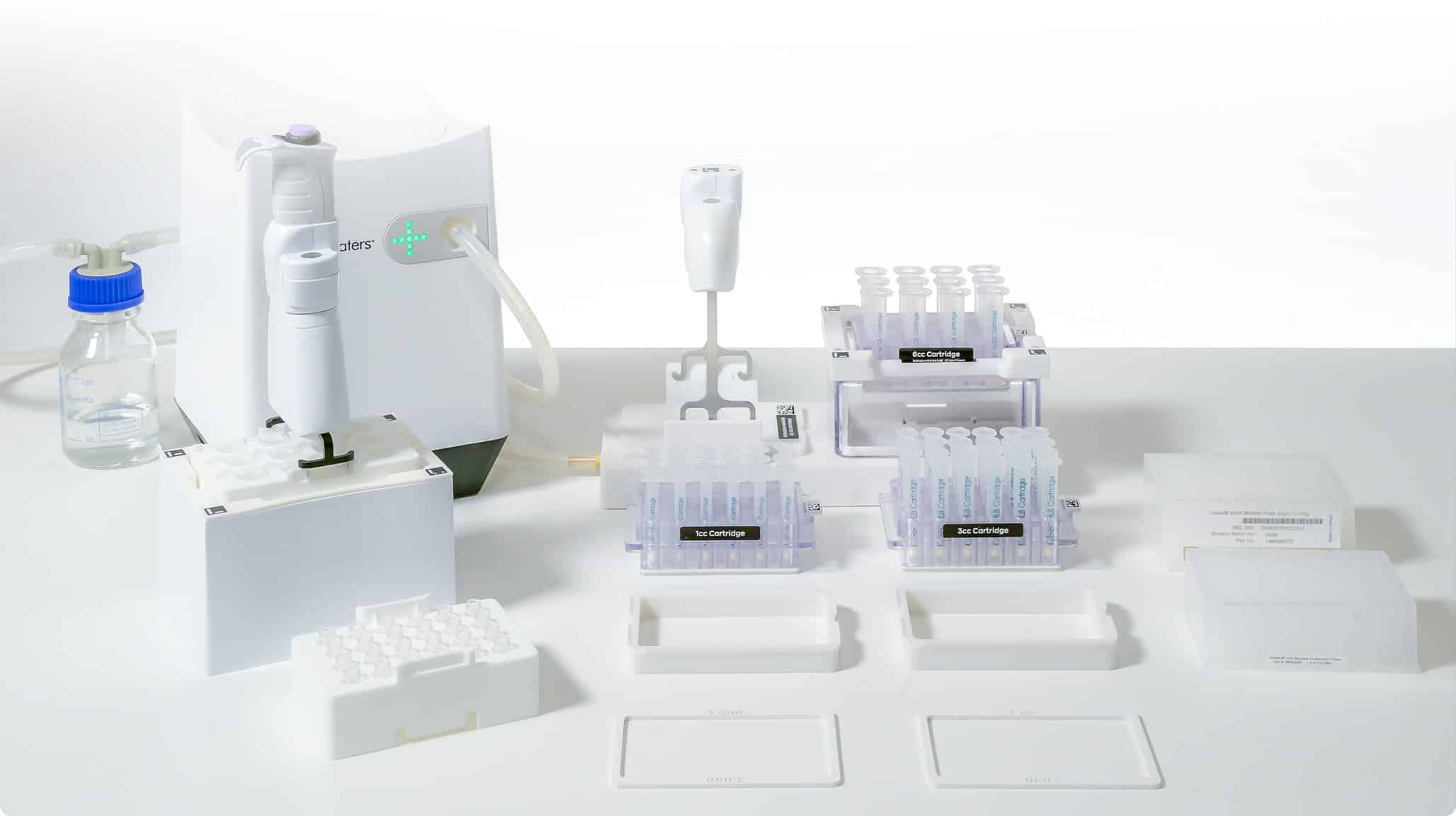

Plate spacers, cartridge adaptors and Collection racks

Your Method. Your Labware Configuration.
All on One Device.

Labware compatibility should not be stopping you from fully automating your SPE methods.
The Extraction+ device allows for automation of plate and cartridge-format SPE depending on the add-on kits you choose. Equip the Extraction+ device with the Plate, 1 cc, 3 cc or 6 cc Cartridge Kits for maximum consumable flexibility.

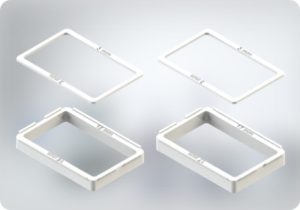

For maximum capture and no cross-contaminations, various SBS format collection plates can sit at different heights within the device thanks to dedicated plate spacers (3mm, 15mm and 17mm). Mix and match them to fine-tune your optimal configuration.

Specially designed, automation-friendly racks exist for both tubes and vials in 12x and 24x formats – to perfectly match up with the available cartridge adaptor formats.

Both collection plates and collection labware racks can be moved by the Andrew+ robot using the Microplate Gripper tool.

What would your Extraction+ labware configuration be?

Extraction+ Adaptor Kits. Make it your own!

includes:
• 3 mm, 15 mm, and 17 mm plate spacers
• Deepwell Microplate Domino
and Storage Plate Domino

includes:

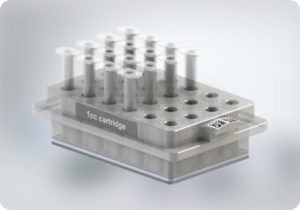

• 1 cc Cartridge Adaptor
• 12 mm Vial Collection Rack
• Collection Rack Domino

includes:

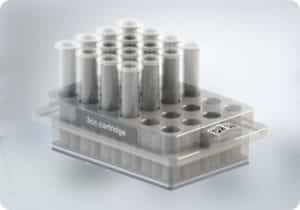

• 3 cc Cartridge Adaptor
• 12 mm Vial Collection Rack
• Collection Rack Domino

includes:

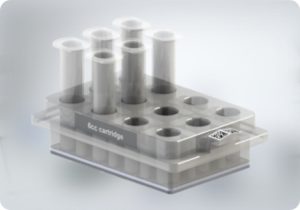

• 6 cc Cartridge
• 5 mL Tube Collection Rack
• Collection Rack Domino

Watch the Extraction+ demonstration

Get to know the Extraction+ device in more detail,
see it in action with the Andrew+ robot and learn how to use it.

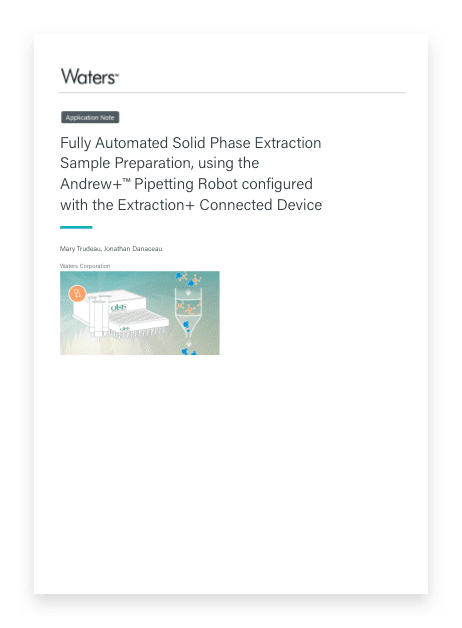

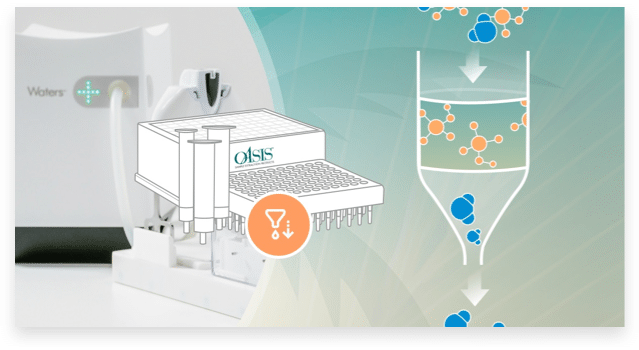

Extraction+ Application Notes

The following work demonstrates the new capabilities and flexibility of the Andrew+ Pipetting Robot in combination with the Extraction+ Connected Device, controlled by OneLab™ Software, for fully automated Solid Phase Extraction (SPE) sample preparation in cartridge and plate SPE formats.

"Get Started" Method with Extraction+

Described protocols use a simple 3-step SPE procedure (load, wash, and elute) in combination with Waters reversed-phase Oasis HLB cartridges (1 cc, 3 cc, and 6 cc size) and 96-well macro and µElution plates.

All Your Methods in One Place.
Accessible. Reproducible. Traceable.

Remove the hassle of knowledge transfer for your complex SPE methods by securely sharing highly detailed methods that have been fine-tuned to your lab’s needs with the members of your connected lab space in the OneLab software.

With OneLab, there’s no need to recalibrate your devices or re-re-redesign your methods each time before a run! Capture your SPE expertise with easily designed methods that can be executed by anyone from your connected lab, exactly as it was intended.

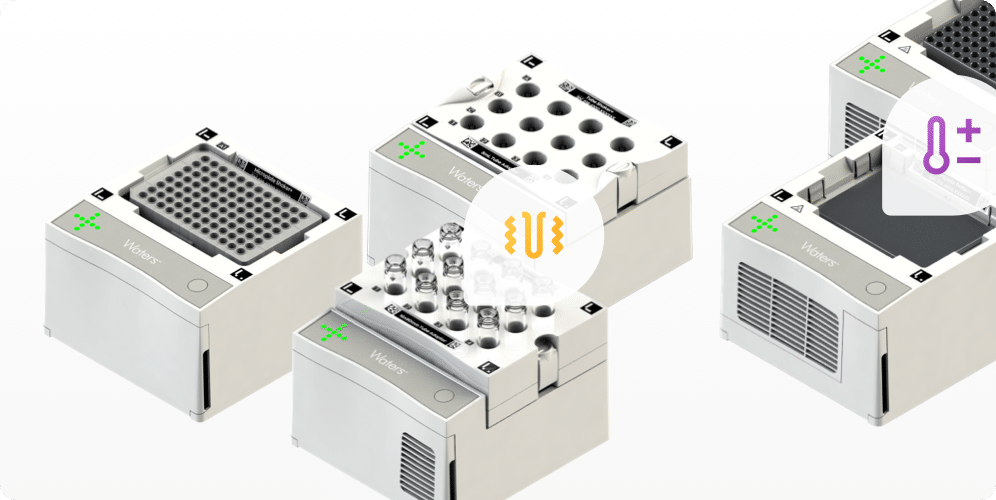

Thanks to additional connected devices working in conjunction with the Andrew+ robot and Extraction+ device, complexify and scale up your workflows without complexifying your method creation.

OneLab software will communicate with and trigger your connected devices in real-time during method executions, all while guiding you every step of the way.

Extraction+
automated SPE

Are you pumped for maximum SPE method repeatability with minimum effort?

Fully automating SPE methods with Extraction+ requires:
Andrew+ pipetting robot

+ Up to 3 bluetooth enabled electronic pipettes
+ A set of Dominos (tip and consumable holders)
+ Extraction+ Base Kit
+ Microplate Gripper (can included in one of the Base Kit)
+ One or multiple kits among this list:
          • Extraction+ Plate Kit
          • Extraction+ 1cc Cartridge Kit
          • Extraction+ 3cc Cartridge Kit
          • or Extraction+ 6cc Cartridge Kit

For extraction and collection labware compatibility list, please refer to the OneLab Domino Catalog.

Interested in automating your SPE sample preparation?

Extraction+ Base Kit options

Part Number

Part

176005201

includes: Extraction+ Vacuum pump, Extraction+ Manifold Base, Power supply, Silicone Tube ø6x12mm, 250mL Glass Bottle, GL45 Screw Cap (twin hose), Extraction+ User Manual, Extraction+ Manifold Collar, Manifold Collar Lifter for Extraction+, Microplate Gripper Tool

176005202

includes: Extraction+ Vacuum pump, Extraction+ Manifold Base, Power supply, Silicone Tube ø6x12mm, 250mL Glass Bottle, GL45 Screw Cap (twin hose), Extraction+ User Manual, Extraction+ Manifold Collar, Manifold Collar Lifter for Extraction+

Extraction+ Labware Kit options

Part Number

Part

176005203

includes: 2 × 3mm Collection Plate Spacer, 15mm Collection Plate Spacer, 17mm Collection Plate Spacer, Adhesive Plate Seal – Samples (×5) (186006336), Storage Plate Domino and Deepwell Microplate Domino

176005204

includes: 1cc Cartridge Adaptor for Extraction+, ⌀12mm Vial Collection Rack, Pack of 1cc Sealing Caps (×24), Collection Rack Domino

176005205

includes: 3cc Cartridge Adaptor for Extraction+, ⌀12mm Vial Collection Rack, Pack of 3cc Sealing Caps (×24), Collection Rack Domino

176005206

includes: 6cc Cartridge Adaptor for Extraction+, 5mL Tube Collection Rack, Pack of 1cc Sealing Caps (×12), Collection Rack Domino

Extraction+ Base Kit options

Part Number: 176005201

includes: Extraction+ Vacuum pump, Extraction+ Manifold Base, Power supply, Silicone Tube ø6x12mm, 250mL Glass Bottle, GL45 Screw Cap (twin hose), Extraction+ User Manual, Extraction+ Manifold Collar, Manifold Collar Lifter for Extraction+, Microplate Gripper Tool

Part Number: 176005202

includes: Extraction+ Vacuum pump, Extraction+ Manifold Base, Power supply, Silicone Tube ø6x12mm, 250mL Glass Bottle, GL45 Screw Cap (twin hose), Extraction+ User Manual, Extraction+ Manifold Collar, Manifold Collar Lifter for Extraction+, Microplate Gripper Tool

Extraction+ Labware Kit options

Part Number: 176005203

includes: 2 × 3mm Collection Plate Spacer, 15mm Collection Plate Spacer, 17mm Collection Plate Spacer, Adhesive Plate Seal – Samples (×5) (186006336), Storage Plate Domino and Deepwell Microplate Domino

Part Number: 176005204

includes: 1cc Cartridge Adaptor for Extraction+, ⌀12mm Vial Collection Rack, Pack of 1cc Sealing Caps (×24), Collection Rack Domino

Part Number: 176005205

includes: 3cc Cartridge Adaptor for Extraction+, ⌀12mm Vial Collection Rack, Pack of 3cc Sealing Caps (×24), Collection Rack Domino

Part Number: 176005206

includes: 6cc Cartridge Adaptor for Extraction+, 5mL Tube Collection Rack, Pack of 1cc Sealing Caps (×12), Collection Rack Domino

Fully automating SPE methods with Extraction+ requires:
Andrew+ pipetting robot

+ Up to 3 bluetooth enabled electronic pipettes
+ A set of Dominos (tip and consumable holders)
+ Extraction+ Base Kit
+ Microplate Gripper (can included in one of the Base Kit)
+ One or multiple kits among this list:
          • Extraction+ Plate Kit
          • Extraction+ 1cc Cartridge Kit
          • Extraction+ 3cc Cartridge Kit
          • or Extraction+ 6cc Cartridge Kit

For extraction and collection labware compatibility list, please refer to the OneLab Domino Catalog.

Interested in automating your SPE sample preparation?

Extraction+ Vacuum Pump
Maximum pump rate

13 L/min

Measurement range (absolute)

0–1030 mbar

Measurement accuracy TEB

25.9 mbar

Resolution

0.1 mbar

Minimum pressure at 370m

100 mbar

Compatible hose inner diameter

6 mm / 1/4 inch

Relative humidity

80% at 37 °C

Maximum operating altitude

2000 m

Environment temperature operating range

+4 to +37 °C

Maximum noise

60 dB (A) at 1 m

User interface

Through OneLab software

Weight

IP20*

Dimensions

200 × 200 × 275 mm

Weight

3.7 kg

External power supply

Input 100–240 VAC, 1.4 A / output 24 VDC, 5 A, 120 W

Power or current rating

5 A

Overvoltage category DC port

Cat I

Operating voltage

24 VDC

Network connectivity

Gigabit Ethernet / WiFi 2.4 GHz and 5 GHz

Pollution degree of the intended environment

Pollution degree 2

Cleaning

Only with a wet tissue or isopropanol

Warranty

1 year

Certification

CE, FCC, RoHS, WEEE

Extraction+ Vacuum Manifold
Compatible labware

please refer to the
OneLab Domino Catalog.

Compatible adapters and spacers

please refer to the
OneLab Domino Catalog.

Dimensions

400 × 127 × 100 mm

Weight

1.5 kg
