Vacuum+

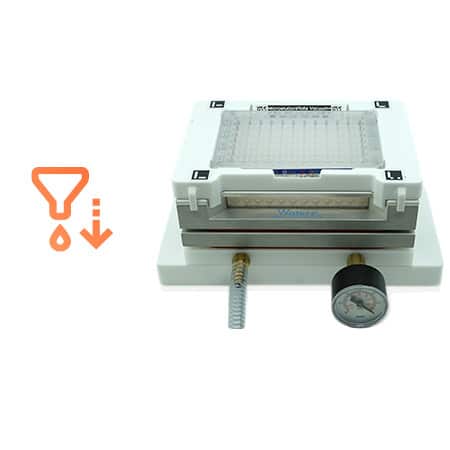

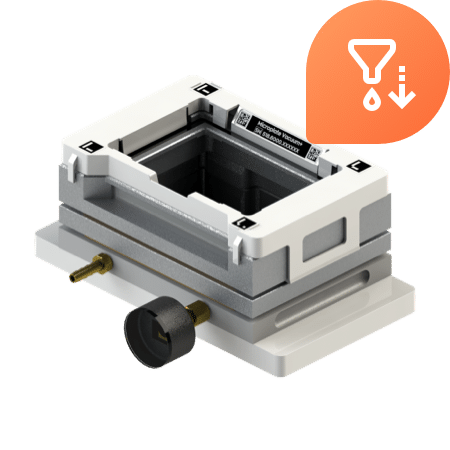

Conduct your Solid Phase Extraction (SPE) with ease using the Vacuum+ extraction manifold, which has the capacity to process up to 96 samples simultaneously. Vacuum+ benefits from enhanced features including automatic pump control for the Waters Vacuum Pump and Extraction Plate Manifold for 96-well Plates. Designed for use with Waters standard 96-Well Plates and novel μElution plate designs, automated solid phase extraction enables you to take full advantage of the unique performance characteristics of Waters Oasis and Sep-Pak extraction plates.


  • Seamless connectivity with OneLab via Wi-Fi/Ethernet, ensuring intelligent, fully remote, operation and tracking.
  • Precision-machined Delrin cover with alignment posts for quick and easy alignment with microplate.
  • Intelligently positioned vacuum gauge for easy pressure readings.
  • Compatible with Waters Extraction Plate Manifold for 96-well Plates including standard and μElution plate designs.

Vacuum+ technical specifications

Vacuum+ manifold

Based on Waters Extraction Plate Manifold for Oasis 96-Well Plates (186001831)

Weight of Vacuum+ domino

1.81 kg

Kit compatible

Waters GlycoWorks RapiFluor-MS N-Glycan Kit 96 (176003635)

Weight

2.55 kg

Dimensions of Vacuum+ domino (W x L x H)

228.8 x 127 x 100 mm

Labware compatible

Waters GlycoWorks HILIC µElution Plate 96 (186002780)

Vacuum pump requirements

Vacuum pump rated for at least 25 – 30 in.-Hg

Bridge technical specifications

Control connectivity

USB

Maximum operating altitude

2000 m

User interface

Through OneLab software

Dimensions (W x L x H)

120 x 120 x 35 mm

External power supply

Input 100-240 VAC, 1.4 A / output 24 VDC, 5 A, 120 W

Overvoltage category DC port

Cat I

Pollution degree of the intended environment

Pollution degree 2

Warranty

1 year

Relative humidity

80% at 37°C

Environment temperature operating range

+4 to +37 °C

Protection class

IP20

Weight

0.30 kg

Power or current rating

5 A

Operating voltage

24 VDC

Network connectivity

Gigabit Ethernet / Wi-Fi 2.4 GHz and 5 GHz

Cleaning

Only with a wet tissue or isopropanol

Certification

CE, FCC, RoHS, WEEE
